Current location:Venturi wet dust collector

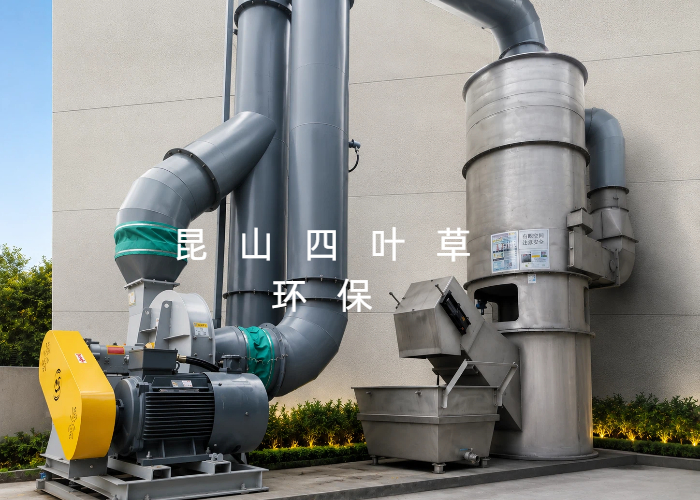

Designed with high-efficiency Venturi washing technology, it consists of core units such as Venturi contraction section, spray system, washing tower body, gas-liquid separation device, circulating water system and intelligent control system, forming a complete wet dust removal and purification system.
The dust-containing gas flows at high speed after entering the venturi throat, and is fully mixed and collided with the spray liquid, causing the dust particles to quickly wet, condense and gain weight, achieving efficient capture in the subsequent separation section. The equipment can simultaneously complete dust removal, cooling, humidification and absorption of some harmful gases. It is especially suitable for high temperature, high humidity, flammable, explosive and sticky dust conditions. The dust removal efficiency can reach more than 99%, and it has excellent purification effect on fine particles.
The system adopts a modular design and can be customized and configured according to air volume, dust characteristics and process requirements to achieve stable operation, easy maintenance, safety and reliability, and provide enterprises with efficient and environmentally friendly dust control solutions.
"Technical Specifications for Wet Dust Collector Engineering"
"Hygienic Standards for Design of Industrial Enterprises" (GBZ 1)
"Comprehensive Emission Standards for Air Pollutants" (GB 16297)
"Design Code for Noise Control in Industrial Enterprises" (GB/T 50087)
"Design Code for Power Distribution of General Electrical Equipment" (GB 50055)
"Safety Protection Specifications for Mechanical Equipment"
"Steel Structure Design Standard" (GB 50017)
"Design Code for Industrial Circulating Cooling Water Treatment"
01: High-efficiency Venturi washing technology
The equipment adopts the Venturi acceleration principle. When the dust-laden airflow passes through the throat, it forms high-speed turbulence and fully collides with the atomized droplets to achieve efficient dust capture.
Advantages:
Strong ability to capture micron-sized particles
Dust removal efficiency is as high as 99% or more
It has good treatment effect on smoke, oil mist and dust.
Especially suitable for fine dust control
02: Integrated dust removal and cooling
During the dust removal process, flue gas cooling and gas washing are completed simultaneously, effectively improving the operating environment of back-end equipment.
Advantages:
Can handle high temperature exhaust gas
Reduce system operating temperature
Reduce the load on back-end equipment
Improve overall system stability
03: Safe handling of flammable and explosive dust
Water medium is used to capture dust to avoid the risk of explosion caused by dust accumulation in the dry dust removal system.
Advantages:
Suitable for aluminum powder, magnesium powder and other working conditions
Reduce the risk of fire and explosion
System operation is safer and more reliable
Meet high safety level production needs
04: Circulating water purification system
Equipped with a circulating water tank, sedimentation separation and automatic water replenishment device to realize recycling of water resources.
Advantages:
Reduce running costs
save water resources
Reduce manual maintenance
Ensure long-term stable operation
05: Industrial grade intelligent control system
Using PLC intelligent control platform, real-time monitoring and remote management of equipment operating status can be achieved.
Advantages:
Automatic start and stop control
water level monitoring
pressure monitoring
Fault alarm
Operation data record
Support remote operation and maintenance management
06: Modular structure design
The equipment adopts a standardized module combination and can be flexibly expanded according to on-site working conditions.
Advantages:
Short installation cycle
Small footprint
Easy maintenance
Later expansion is simple
Adapt to the application needs of multiple industries
